Description

Product Description:

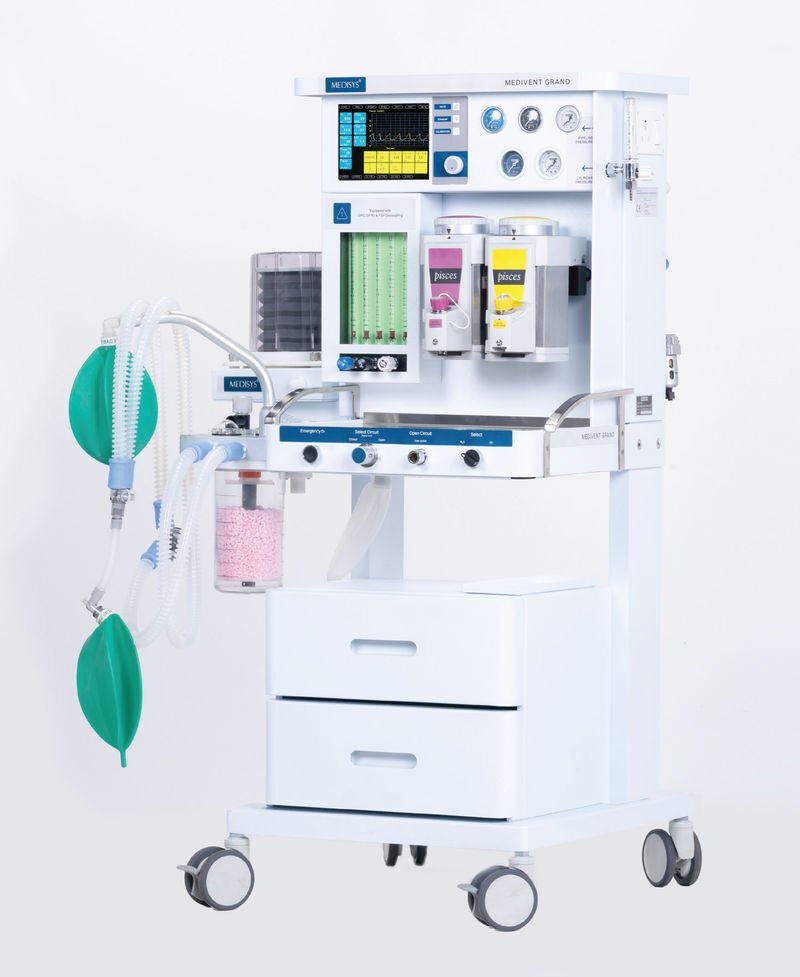

The Medivent Grand is a state-of-the-art Anaesthesia Workstation with high-end ventilation capabilities and advanced safety features. Designed to ensure patient safety and comfort, this workstation integrates Hypoxic Guard to maintain at least 25% oxygen in the Fresh Gas Flow (FGF).The Oxygen Failure Protection Device (OFPD) prevents hypoxia by shutting off the flow of Nitrous Oxide (N₂O) in case of O₂ failure, triggering both visual and audio alarms.

This compact workstation can operate efficiently at a low Fresh Gas Flow (FGF) of 500 ml per minute while maintaining precise tidal volume delivery. The integrated ventilator supports the Pressure Regulated Volume Control (PRVC) mode,which combines Pressure-Controlled and Volume-Controlled Ventilation to minimize lung damage due to barotrauma while delivering the required tidal volume.

With Dynamic Compliance Compensation, the ventilator makes breath-to-breath corrections to maintain an accurate tidal volume, adapting to lung compliance variations.Additionally,the Fresh Gas Flow Decoupling (FGD) technology ensures that the tidal volume remains unaffected by changes in fresh gas flow.The compact footprint makes it ideal for modern operating rooms, ensuring seamless usability and reliability.

Key Features:

Hypoxic Guard prevents O₂ concentration below 25% in the O₂-N₂O mixture.
Oxygen Failure Protection Device (OFPD) shuts off N₂O in case of O₂ failure and triggers alarms.
Low Fresh Gas Flow Operation (500 ml/min).
Fresh Gas Flow Decoupling (FGD) ensures consistent tidal volume irrespective of FGF variations.
Dynamic Compliance Compensation adjusts tidal volume based on lung compliance.
Multiple Ventilation Modes: VC, PC, PRVC, SIMV (VC), SIMV (PC), and Spontaneous.
Additional Ventilation Features: PEEP, Pressure Support, and Apnea Backup Ventilation.
Built-in Oxygen Analyzer for FiO₂ display on an 8.4-inch TFT color screen.
Comprehensive Monitoring: FiO₂, Tidal Volume, Minute Volume, Plateau, Peak, and Mean Airway Pressure.
Selectatec Mounting System for two vaporizers with temperature and pressure compensation and interlocking facility.
Multiple Gas Connections: Two pin-index cylinder mounts (O₂ and N₂O), plus separate connections for central pipeline supplies (O₂, N₂O, and Air).
Quick Switch Between Open & Closed Circuits and selection between N₂O and Air.
Ascending Bellows in Ventilator providing real-time visual feedback on leaks, low FGF, and patient response.
Auxiliary Oxygen Outlet with a flowmeter and control.
Emergency Oxygen Flush delivering 20-75 L/min, bypassing the vaporizer.
Battery Backup for up to 2 hours.
