Description

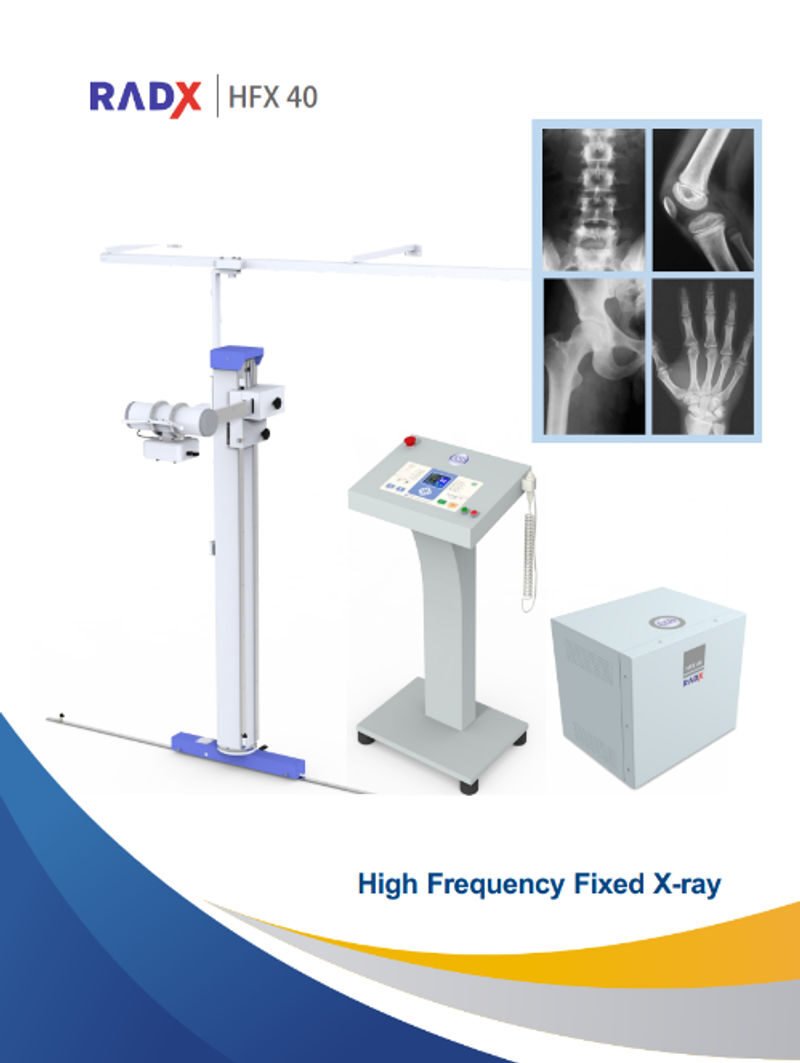

The HFX 40 is a high-frequency fixed X-ray system designed to deliver reliable and efficient radiographic imaging. With a powerful 40 kW output, advanced digital controls, and a rotatory anode X-ray tube, the system ensures high-quality images across various clinical applications. Its ergonomic design with a fixed stand, flexible tube positioning, and user-friendly control panel makes it suitable for hospitals, diagnostic centers, and imaging facilities requiring precision, safety, and durability.

Key Featires:

High-frequency generator with 40 kW maximum output for superior image quality.
Wide kV range (40–125 kV) with fine 1 kV step adjustment.
Flexible mA range (10–500 mA) and exposure control for varied examinations.
Rotatory anode X-ray tube with dual focal spots (1.0 mm & 2.0 mm).
Manual Light Beam Diaphragm (LBD) collimator for accurate field alignment.
Fixed Stand (FS) with wide vertical travel and rotation movement (±180°).
Soft-touch keypad with color TFT display for user-friendly operation.
Meets international standards: ISO 13485:2016, ISO 9001:2015, BIS, AERB approved.
