Description

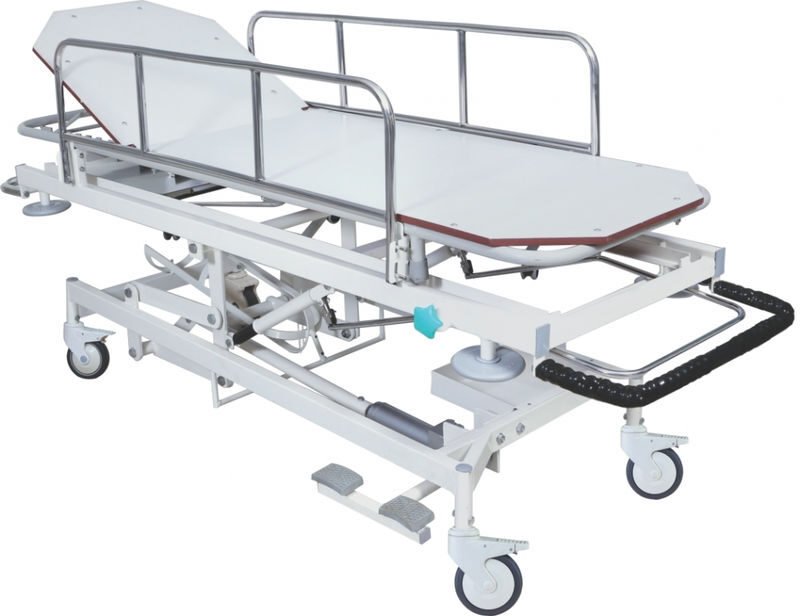

MPI-1030 Emergency Recovery Trolley – Standard Configuration

Frame Construction:
Sturdy frame made of CRCA rectangular pipe with collapsible side railings for patient safety.

Mattress Platform:
Removable radiolucent 2-section top with ratchet mechanism for backrest adjustment.

Positioning Functions:
Trendelenburg and Reverse Trendelenburg positions operated through a pneumatic pump mechanism.

Castors:
Equipped with 125 mm diameter castors with diagonal locking system for smooth mobility and stability.

Standard Accessories:

Oxygen cylinder holder

I.V. Rod

Side protective buffers

Mattress

Dimensions:
Frame Size: 1930 mm (L) × 610 mm (W) × 650–950 mm (H)

Optional Feature:
Hi-Low height adjustment through manual crank mechanism.
