Description

Brand Forus

Product Overview

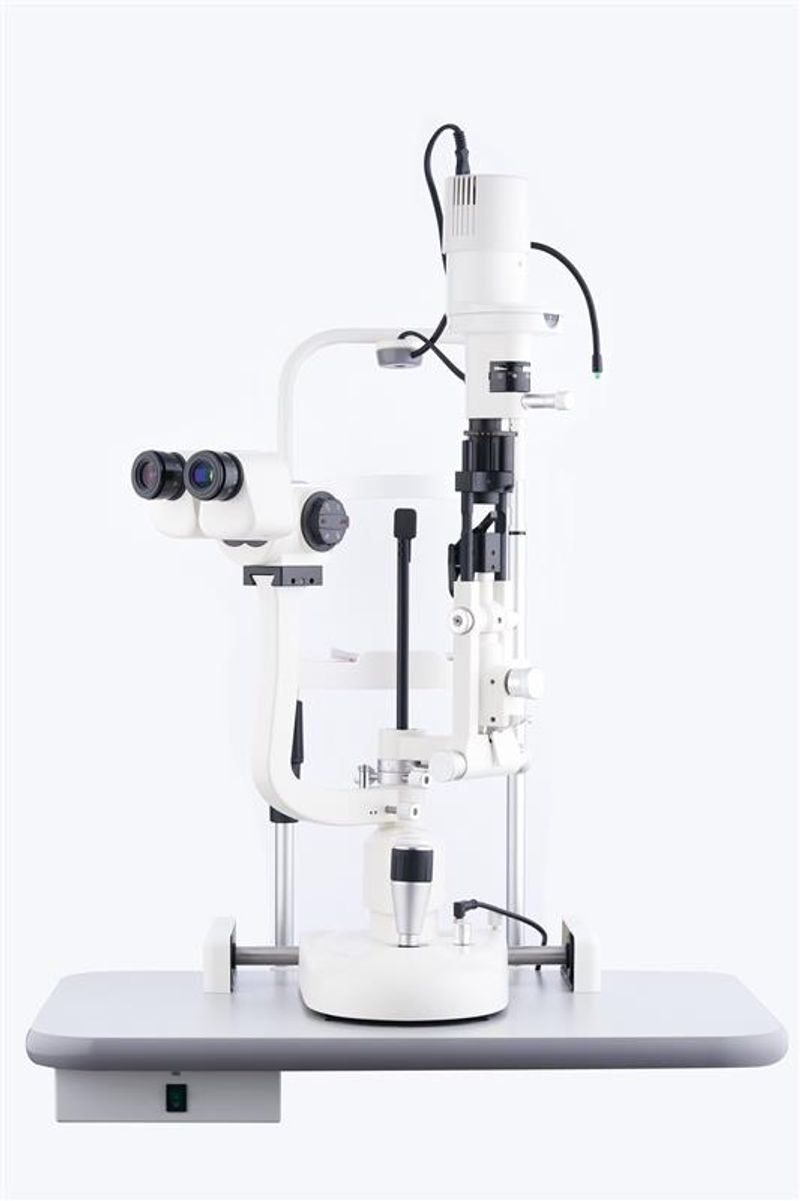

The 3nethra SL5‑1000 is a high‑precision ophthalmic slit lamp designed for comprehensive examination of the anterior segment of the eye. It uses a Galileo-type stereo microscope with advanced optical clarity and allows a full range of magnification, illumination control, and imaging integration.

USP: The slit lamp comes with a complimentary slit lamp table.

1. Optical System
Microscope Type: Galileo magnifier with intersecting binocular lens tube
Eyepiece: 12.5X
Diopter Adjustment: +5D to –5D
Interpupillary Distance: 55–72 mm (adjustable)
Magnification Levels:
6X, 10X, 16X, 25X, 40X (5‑step rotary drum)
Field of View:
33mm, 22.5mm, 14mm, 8.8mm, 5.5mm
2. Illumination System
Light Source: 12V, 30W tungsten halogen lamp
Slit Width: 0–14 mm
Slit Height: 1–14 mm
Aperture Sizes: Ø14, Ø10, Ø5, Ø2, Ø1, Ø0.2 mm
Slit Rotation: Continuous 0° to 180° (horizontal to vertical)
Vertical Tilt Options: 5°, 10°, 15°, 20° (4 steps)
Filters Included:
Colourless
Heat‑insulating
Light‑reducing
Red‑free
Cobalt blue
3. Mechanical Movements
Base Movement:
90 mm forward/backward
100 mm left/right
Vertical Movement: 30 mm
Spot Size Control: 5‑step drum adjustment
4. Build & Power
Weight: 19 kg
Power Input: 110–240V AC
Output: 12V DC / 2.5A
